Clean Air, Reliable Systems—Start with the Right Filter
Ensure clean, dry air that extends equipment life and cuts costs with high-performance filters from TEW Group.
Lower Operating Costs
Efficient contaminant removal means lower pressure drop, less energy consumption, and fewer maintenance interventions—helping you cut costs across the board.
Enhanced Air Purity
Meet even the strictest ISO air purity classes. Our filters protect pneumatic tools and production lines from moisture, oil vapors, and particulates.
Extended Equipment Lifespan
Clean air reduces internal wear, corrosion, and unexpected failures, ensuring longer service life for your compressors and air-powered equipment.
How to Find the Right Filter for Your Application
Identify contaminants (dust, water, oil, vapors) in your system
Determine required air purity class (e.g. ISO 8573-1)
Choose a filter that meets both needs for optimal protection
At TEW Group, we offer a complete range of Atlas Copco filters, each engineered to target specific contamination risks. Once you've defined your needs, use our filtration guide to match your requirements with the right filter type, ensuring reliable air quality, system efficiency, and long-term equipment protection.
Types of Air Compressor Filters We Offer
We supply a complete range of Atlas Copco filters, engineered for specific filtration tasks:
Why Choose Our Air Compressor Filters?
Our range of Atlas Copco filters is built on continuous innovation—engineered not just to protect your air systems, but to give your operations a performance edge. With advanced filtration technologies and smart design features, these next-generation filters deliver cleaner air, greater energy savings, and easier maintenance.
Here are just a few key innovations that set them apart:
Wrapped Media (Nautilus Technology)
Durable and efficient in wet or oil-laden environments. Maintains low pressure drop and consistent air purity even in the harshest working conditions.
Pleated Media
Ideal for dry particles. Offers a large filtration surface for long service life and low pressure loss.
Macro-Structured Activated Carbon
Superior adsorption capacity for oil vapors. Delivers steady filtration performance over extended periods.
Cyclone Water Separator
Uses centrifugal force to remove liquid water before it damages your air system.
inPASS™ Bypass Technology
inPASS™ is a built-in bypass feature that allows filter maintenance without interrupting air flow. It eliminates the need for external piping, reducing installation costs and service downtime.
Built-in Service Indicator
All filters include an integrated service indicator that tracks:
Differential pressure
Running hours
Maintenance status
Advanced models can send remote alerts, helping you stay ahead of servicing needs and avoid unplanned downtime.With Atlas Copco’s advanced air drying solutions, you can tackle these challenges head-on, protecting your equipment, boosting productivity, and reducing overall costs.Unreliable dryers cause interruptions and maintenance issues. Ours are built for durability and low upkeep, maximizing uptime and system reliability.
Need Help Choosing the Right Filter?
Not sure which contaminant you need to filter out or what ISO class your process requires?
Contact our team at TEW Group. We’ll help you choose the best solution to protect your equipment and optimize your investment.
General applications
| Name | DDp+ | PDp+ | DD+ | PD+ | UD+ | QD+ | QDT+ |
| Grade | Rough | Fine | Rough | Fine | Ultimate | Basic | Optimal |
| Contaminant | Dry Dust | Dry Dust | Oil aerosol/wet dust | Oil aerosol/wet dust | Oil aerosol/wet dust |
This table provides information about compressed air filters and their general applications.
Special applications
| Name | H High-pressure | SFA Silicone-free | |||
| Grade | Rough & fine | Rough & fine | Basic | Rough & fine | Basic |
| Contaminant | Dry dust | Oil aerosol/wet dust | Oil vapor | Oil aerosol/wet dust | Basic |
This table provides information about compressed air filters and some special applications.
Which Filter Matches Your Required Air Purity Class?
Another effective way to select the right filter is by identifying the air purity level your application demands, based on the international ISO 8573-1:2010 standard. This standard defines specific classes for solid particles, water, and oil content in compressed air.

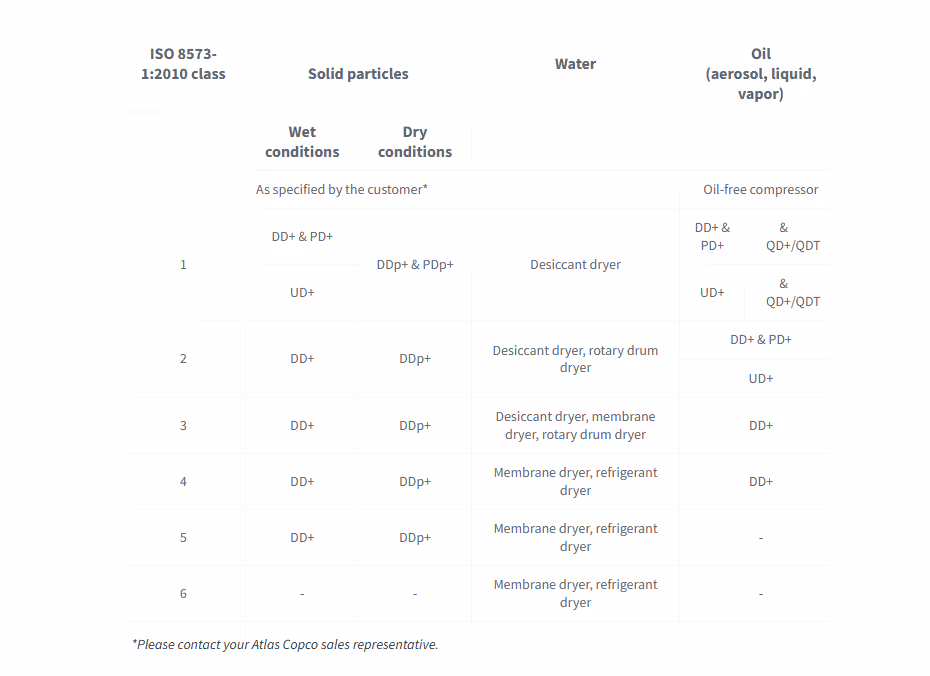

The table below outlines the ISO 8573-1:2010 air purity classes along with the recommended Atlas Copco filter and dryer combinations that help you meet those standards.
Want to dive deeper into ISO air purity classes?
Read our detailed guide on compressed air quality standards.
Examples of typical installations
| A | Compressor - UD+ | Air purity class ISO 8573-1:2010 [1:-:2] |
| B | Compressor - UD+ - Refrigerant dryer | Air purity class ISO 8573-1:2010 [1:4:2]* |
| C | Compressor - UD+ - Refrigerant dryer - QDT - DDp+ | Air purity class ISO 8573-1:2010 [2:4:1] |
| D | Compressor - UD+ - Desiccant dryer - DDp+ | Air purity class ISO 8573-1:2010 [2:2:2] |
| E | Compressor - UD+ - Desiccant dryer - QDT - DDp+ - PDp+ | Air purity class ISO 8573-1:2010 [1:2:1] |
*Please contact your Atlas Copco sales representative.
Air Filters
A comprehensive range of compressed air filtration solutions, available in various types and grades, all backed by our expert application knowledge.

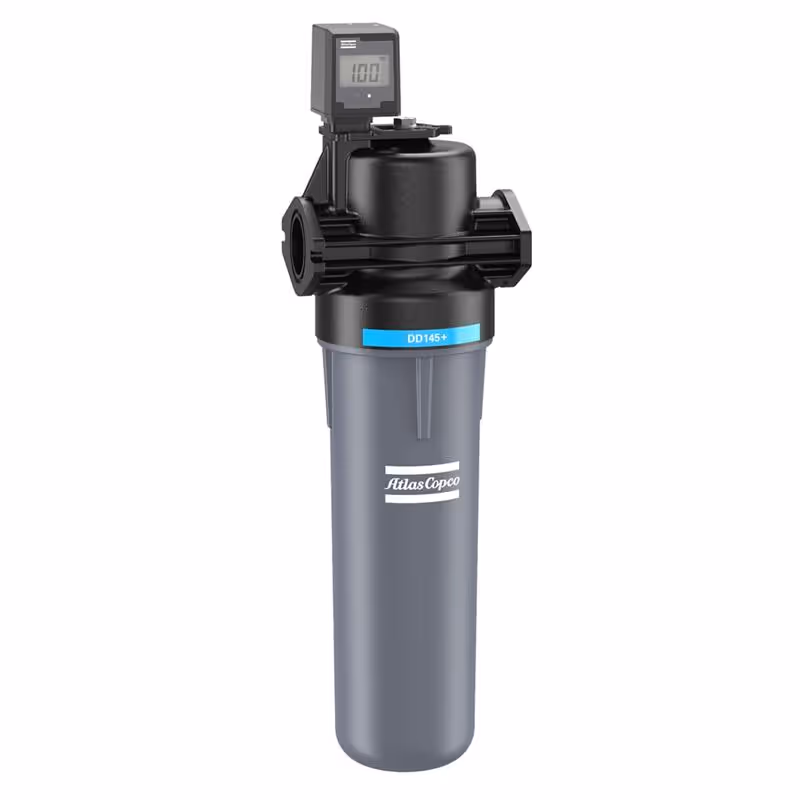

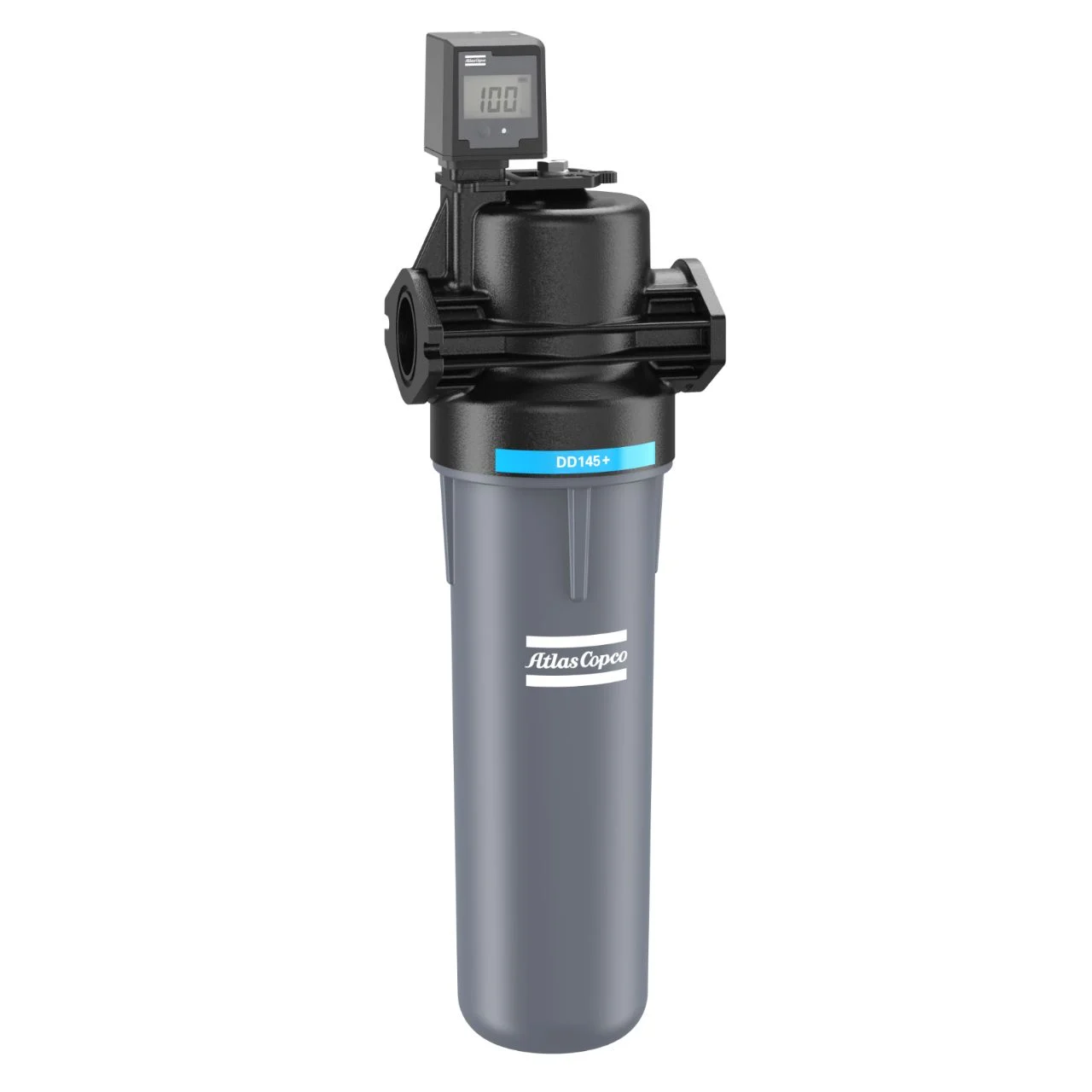

DD145+ pack
Dust filtration for your air compressor. Are you looking to protect your compressed air system from dust? Then Atlas Copco has the perfect filter for you – the DDp+/PDp+ series

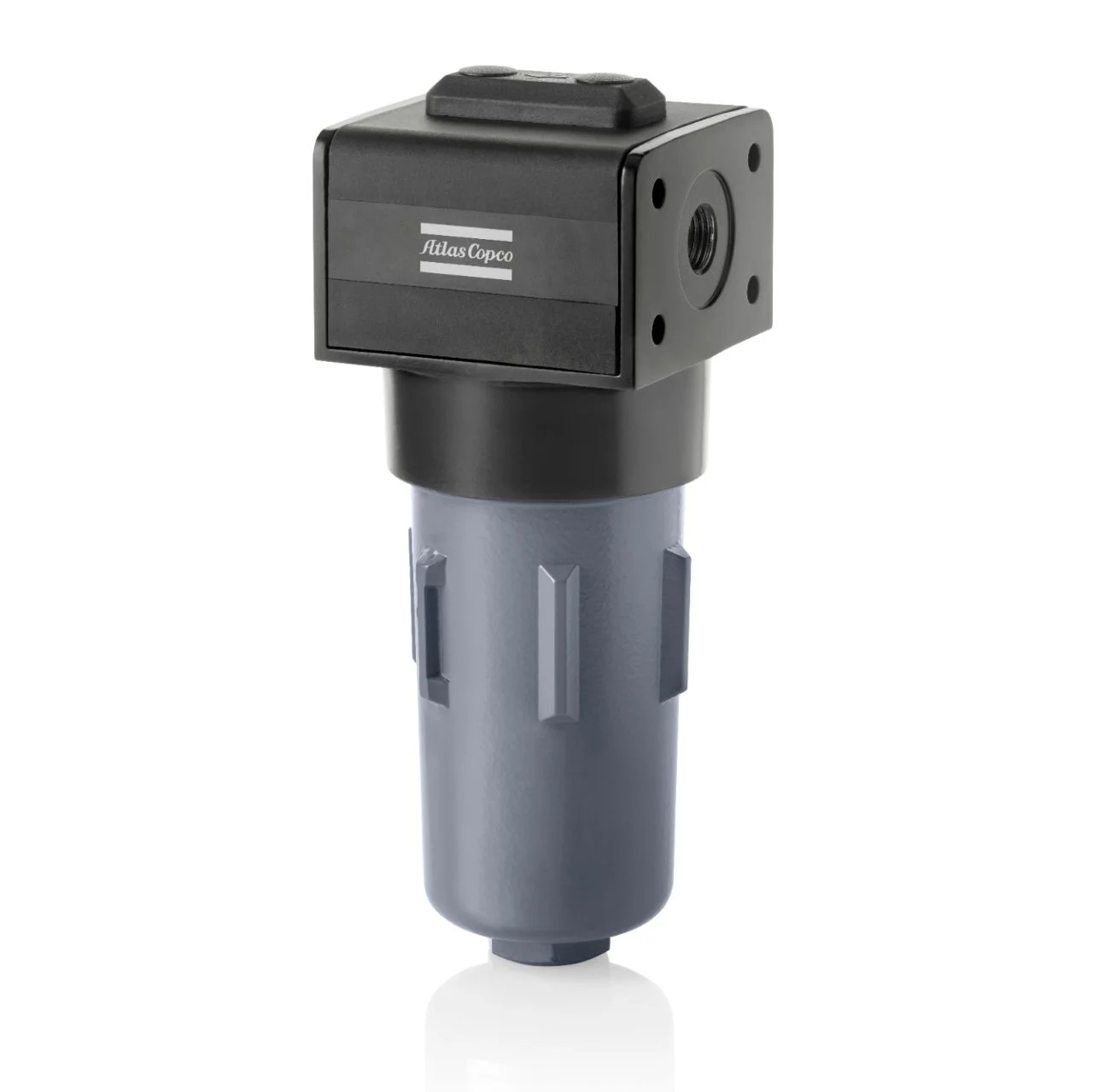

High pressure filtration
Are you looking for high-pressure filtration to protect your compressed air system from a wide range of contaminants? Then Atlas Copco has the perfect filter for you – the H series.

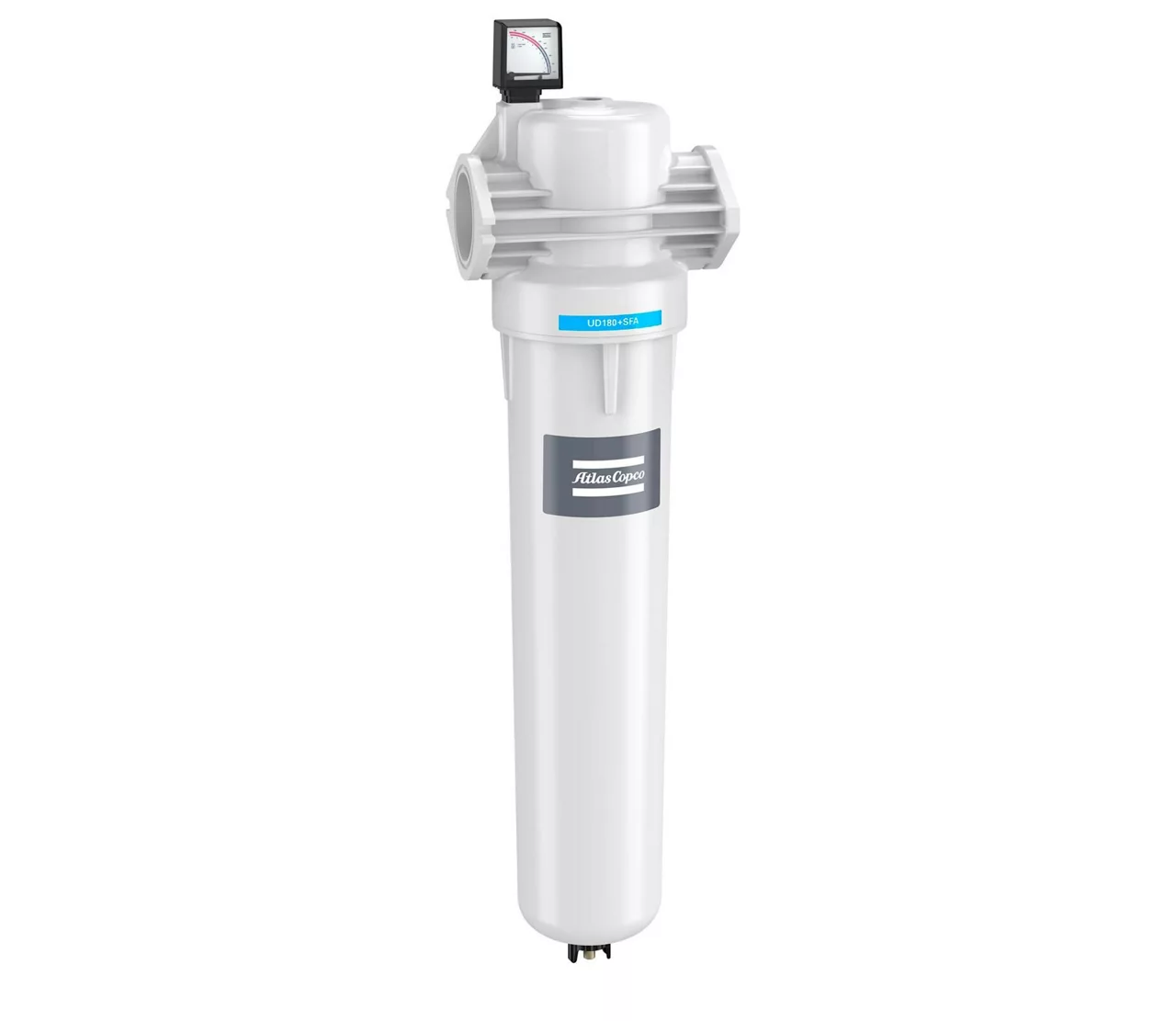

UD 180+ SFA Silicone-free compressed air filter
Silicone-free filtration for air compressors. Do you need silicone free filtration to protect your compressed air system from a wide range of contaminants? Then check out Atlas Copco’s SFA series of silicone free air filters.

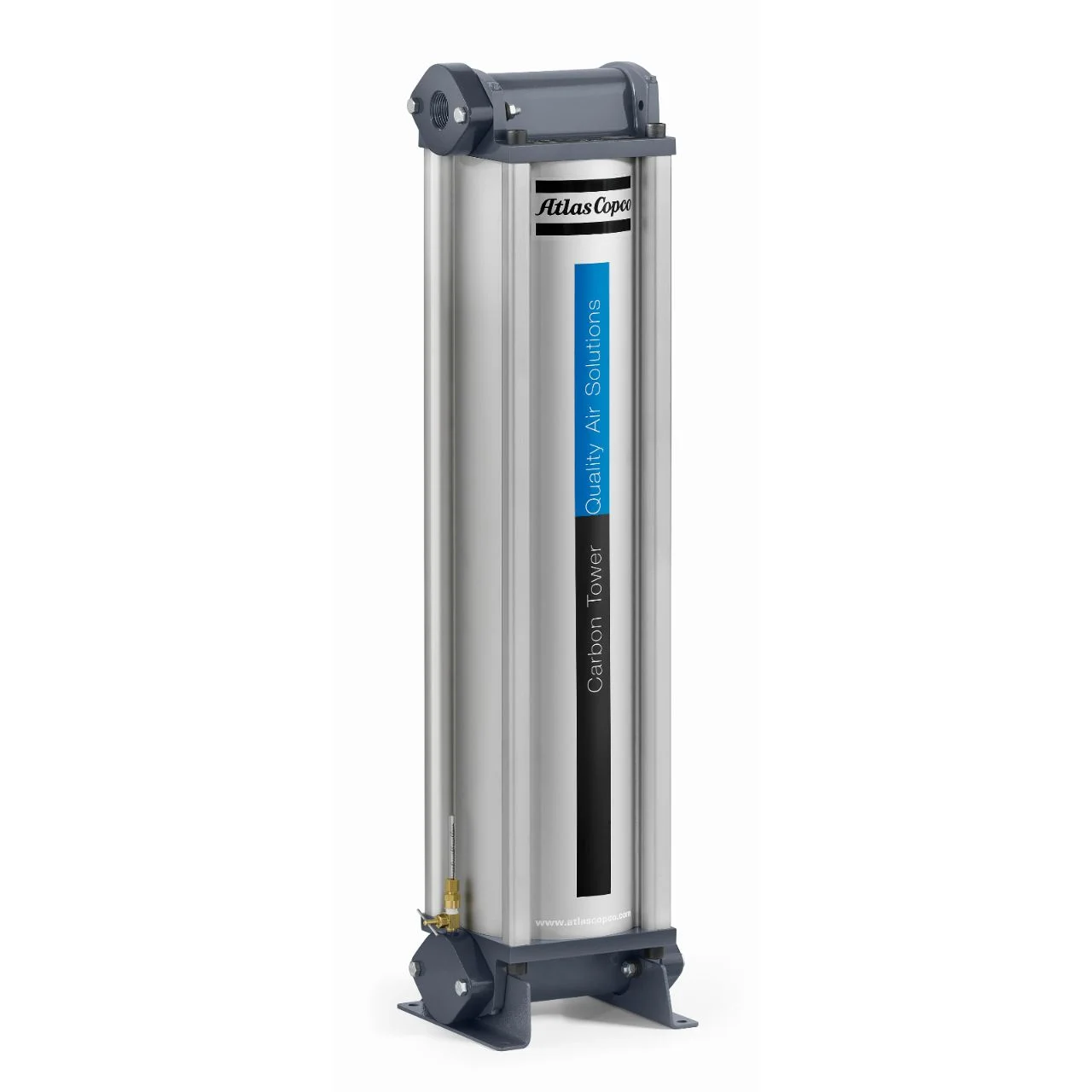

Oil vapor filtration
Oil vapor filtration for air compressors. Are you looking for oil-vapor filtration to protect your compressed air system from oil vapors? Then Atlas Copco has the perfect filters for you – the QDT and QD+ series

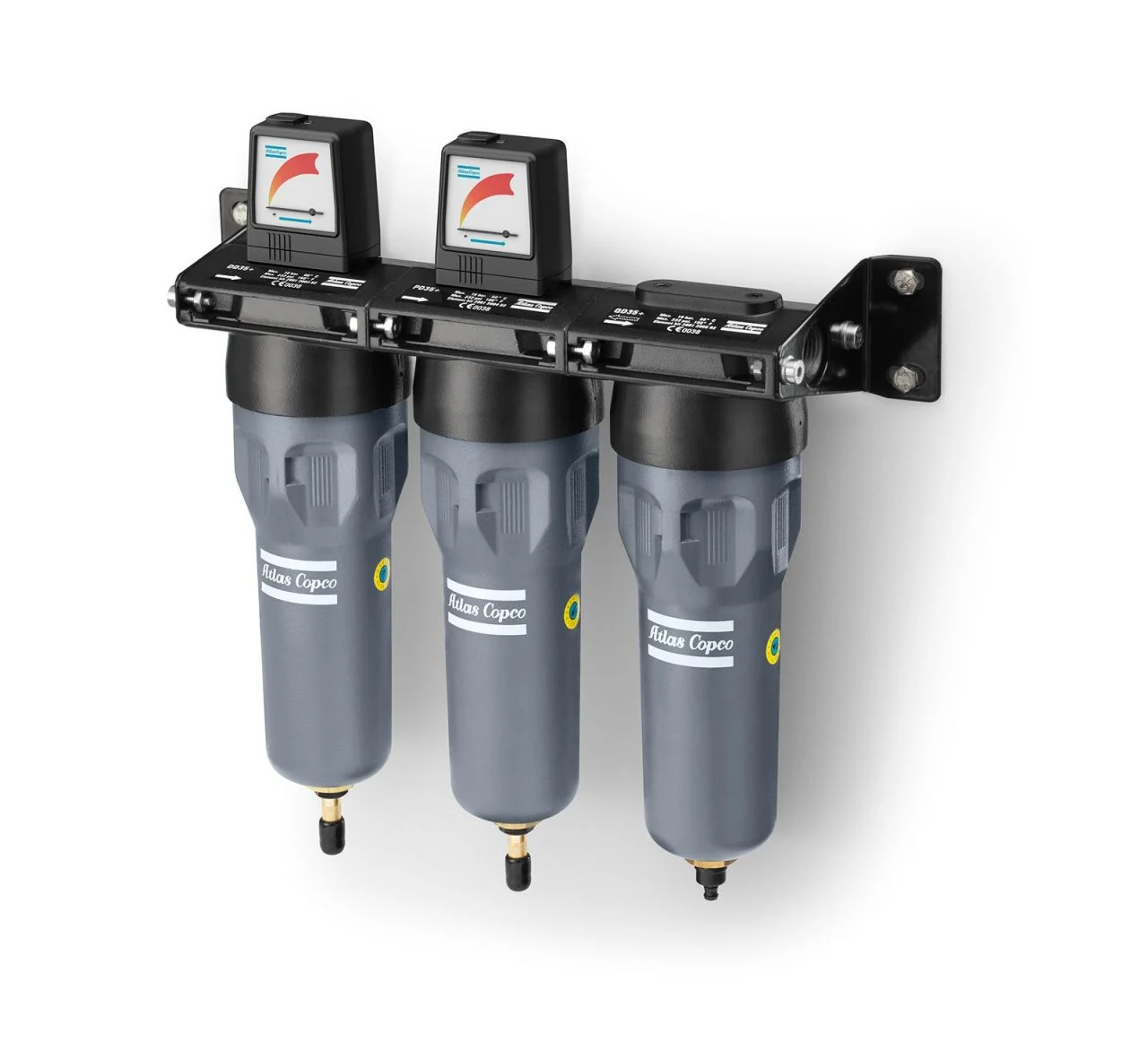

Compressed air filter
DD(+) and PD(+) oil coalescing filters. Our high-performance oil-coalescing filters remove oil aerosol, wet dust and water drops from compressed air

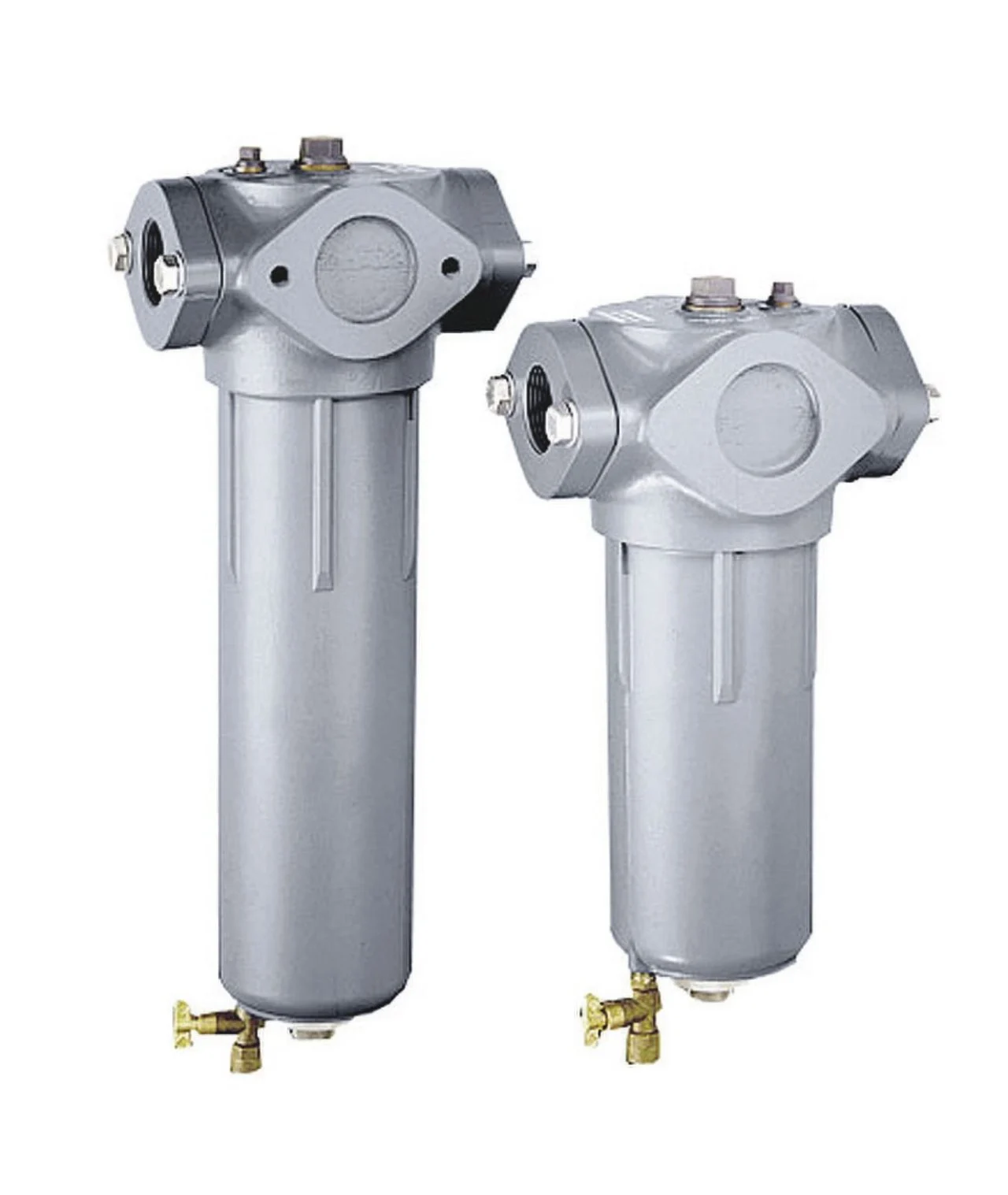

Water droplet filtration
Water droplet filtration for compressed air systems. Are you looking for a water droplet filtration for your compressed air system to protect it from water droplets? Then Atlas Copco has the perfect solution for you – the WSD water separator.
Coalescing filters for wet dust and oil aerosols
Are you looking for coalescing filters for wet dust and oil aerosols to protect your compressed air system? Then check out Atlas Copco’s DD+/PD+ and UD+ series

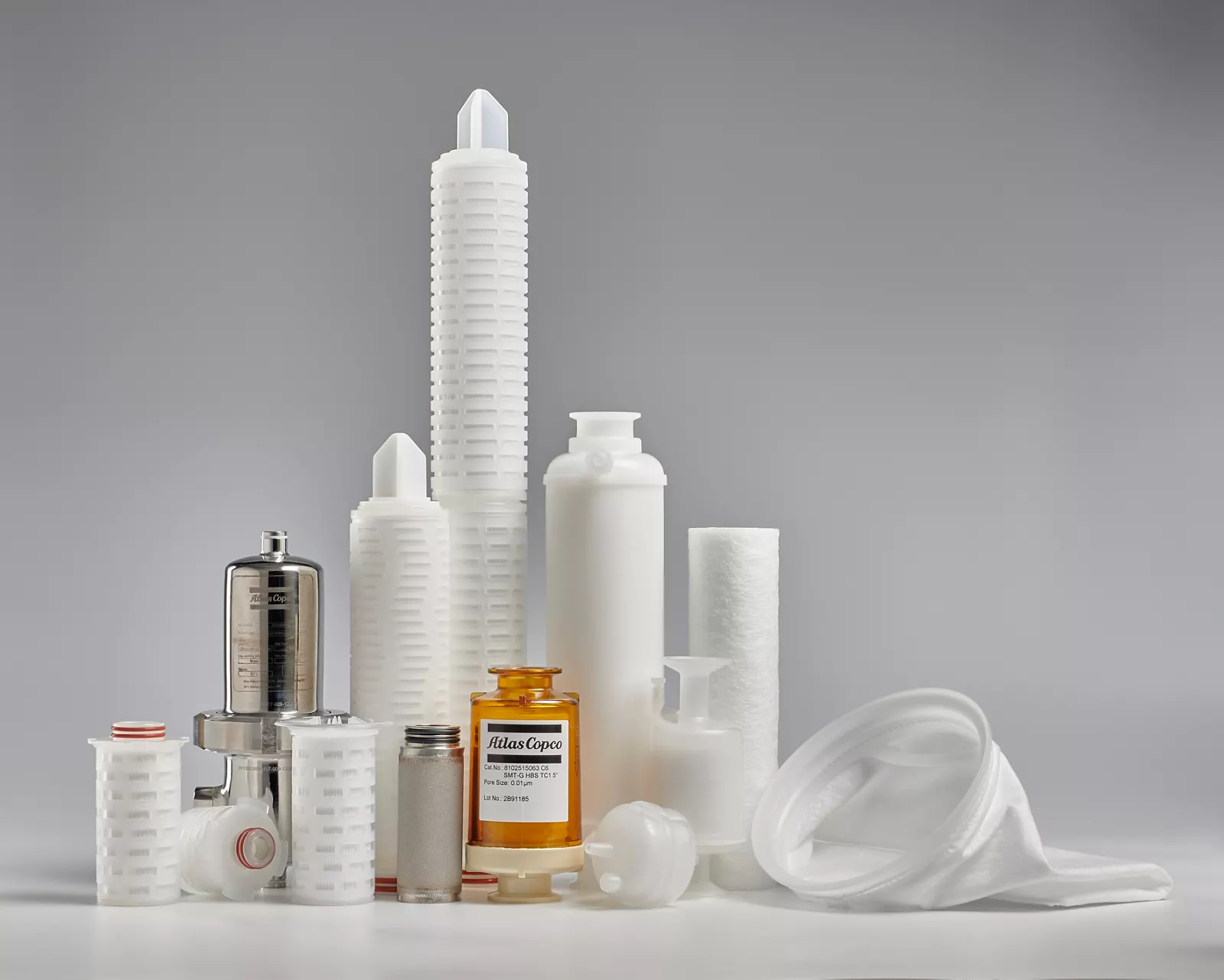

Process filtration
We meet gas and liquid filtration requirements in different industries
Not sure what you need? Discover Tailored Solutions for Your Industry
Need Help Choosing the Right Air Filter?
